Checking if an element is within the sprinkler's effective diameter?

[Anees Alomar]

Hi, I am looking for a rule that checks if there an element is within the sprinkler’s effective diameter?

I have seen it somewhere in the past but I can’t remember where it is now.

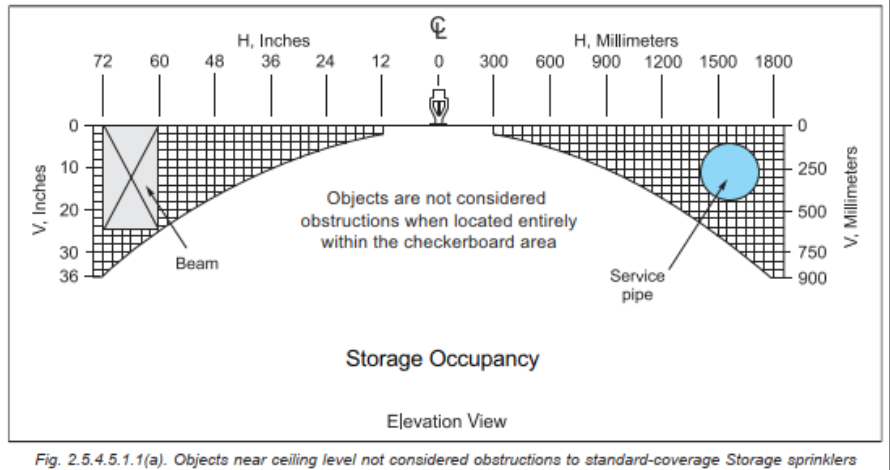

The rule must check if the elements are within the hatched areas in the attached Picture.

Thanks for your support.

[Nicola Tessarolo]

hi @Anees-Alomar

In this particular case, I often use rule #240:
https://help.solibri.com/hc/en-us/articles/1500004738622-240-Effective-Coverage-Area

Maybe this is the one that you are looking for?
I hope you have a great weekend ahead of you!
Many regards from Switzerland,
Nico

[Anees Alomar]

Hi @Nicola-Tessarolo,

Thanks for your reply, I appreciate it.

Yes, that’s the one I meant, thank you

Wish you a lovely weekend!

Anees
