Troubles setting up SOL 203 from Revit

Scheduled Pinned Locked Moved Solved General Discussion
ruleset managerrule203
3 Posts 2 Posters 647 Views
  • Oldest to Newest
  • Newest to Oldest
  • Most Votes
Log in to reply
This topic has been deleted. Only users with topic management privileges can see it.
  • J Offline
    J Offline
    julian.knoppek
    wrote on last edited by julian.knoppek
    #1

    Hey Solibri Gang,

    I keep running into issues properly setting up rule 203 / Required Property Sets.
    In order to enforce modelling quality, we need to make sure all entities are assigned their respective information (e.g. room number and name etc.)

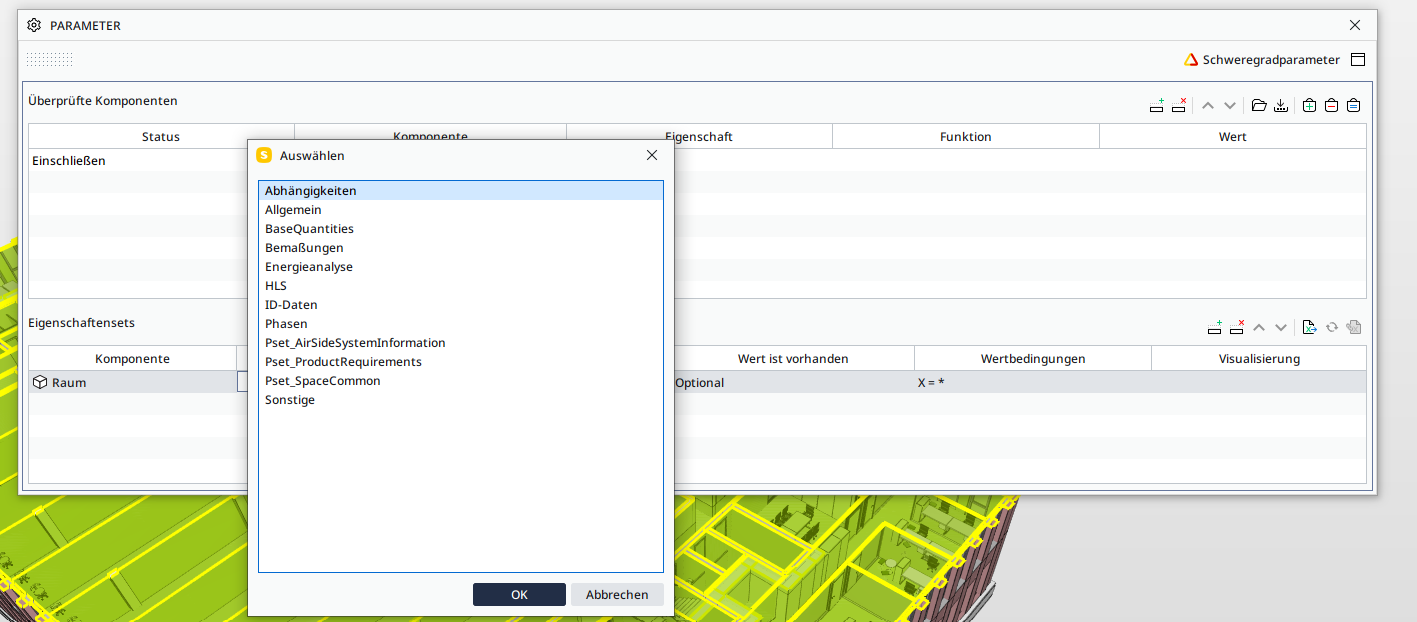

    Here is the issue: my available property sets in my rule parameters

    Screenshot 2024-07-01 114105.png

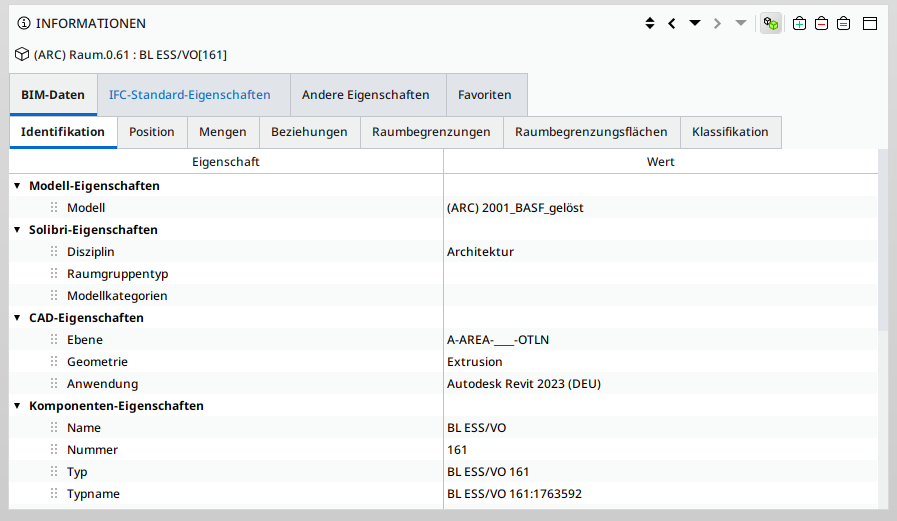

    do not match the information given by my entities (in this case, again, rooms):

    Screenshot 2024-07-01 114015.png

    Weirdly, this does not pose a problem when I try to access this info when I use them for an ITO.
    All necessary information is already attached to the entities, I just cannot find a way to access them via the ruleset manager.

    Anyone encountered something similar?
    I use version 24.5.0.31

    1 Reply Last reply
    0
    • MattiM Offline
      MattiM Offline
      Matti Solibrians
      wrote on last edited by
      #2

      This rule 203 is only for property sets.

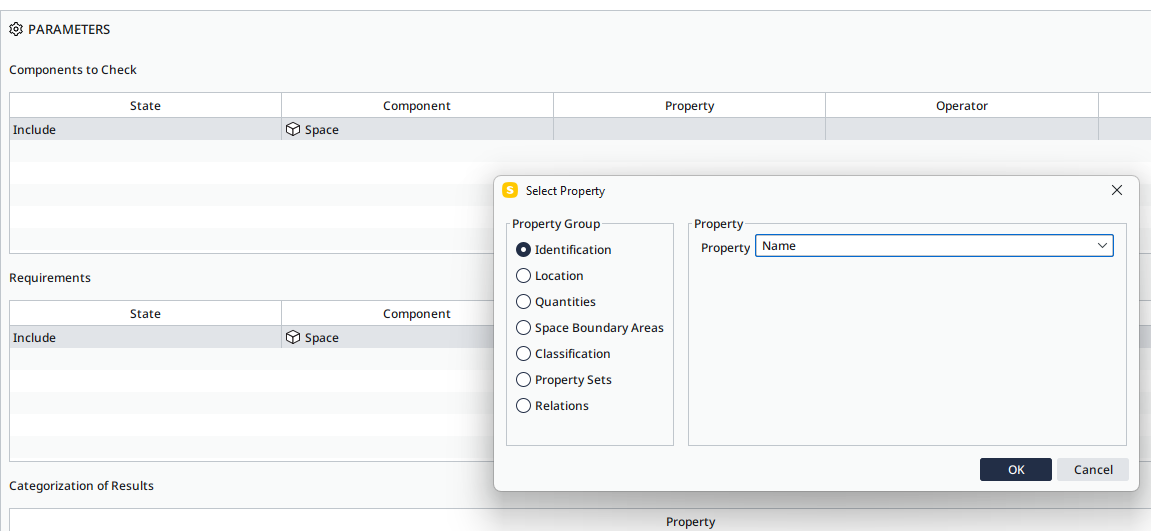

      Use rule 230 for checking room number and name.


      1 Reply Last reply
      0
      • J Offline
        J Offline
        julian.knoppek
        wrote on last edited by
        #3

        230 works like a charm. Thanks for helping out!

        1 Reply Last reply
        0
        • jakub.rusinJ jakub.rusin has marked this topic as solved on
        • jakub.rusinJ jakub.rusin unlocked this topic on
