Rule #233 - Allowed Beam Intersection Discussion

[Pann MH]

Hi
My name is Pann and can you guys please help me how to use this rule?
I tried to read it from the rule manual and tried lots of way but couldn’t get what I wanted.

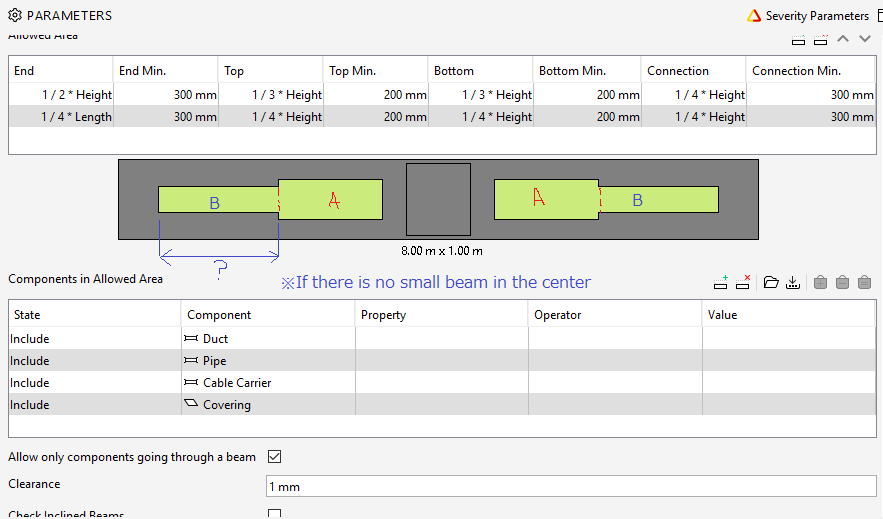

I just want the length of the ‘B’.
Now, the ‘B’ length continues until the end of ‘A’.
I know I can adjust from ‘connection’ column or deduct the length of ‘A’,
but what if there is no intersection beam in the middle?

[Matti]

@Pann-MH said in Rule #233 - Allowed Beam Intersection Discussion:

an adjust from ‘connection’ column or deduct the length of ‘A’,

Remove the second row from the Allowed Area parameter. Then you have single area.

[Matti]

“but what if there is no intersection beam in the middle?”

The visualization under the parameter shows a case when there is an connection to other beam.
In case you don’t have it the the allowed area is not having that gap.
