Can't select the intersectionpoint of 2 Grids

[Ricardo]

When aligning PDF drawings in Solibri, I like to do this based on the Grids because it’s easy and fast.

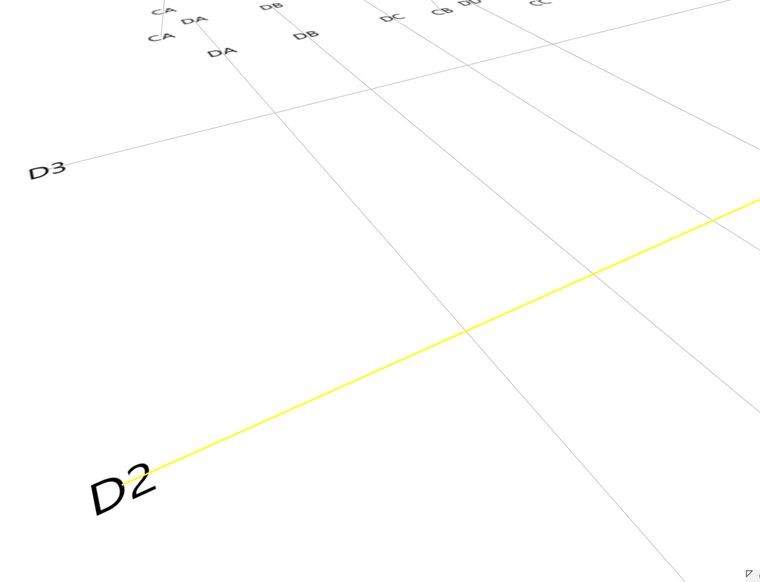

However, in some models Solibri just doesn’t let me select the intersection point of 2 grids.

Does anybody know why this can happen? Sometimes (like in this case) it’s in the whole model. Other times it is on some, but not all grids in a model.

[john.lipp]

@ricardo

What application is creating the PDF?

If some PDFs are able to snap to the intersection while others can’t, were they printed with the same settings?

In order to understand that they are lines (which it appears it does as the entire line is (highlighted) they should be exported as graphics rather than raster in the print settings. Also, you’ll likely want to print to a more detailed, larger page size to see if that helps.

Also, you could try loading the PDF on its own to see if somehow there is a large model space causing the issue with extra geometry on the extents.

Could you send an example PDF?
