  3. Is there any way to create/add "sub-classifications" within Classifications?

Is there any way to create/add "sub-classifications" within Classifications?

Scheduled Pinned Locked Moved Unsolved General Discussion
5 Posts 4 Posters 1.1k Views
  • Oldest to Newest
  • Newest to Oldest
  • Most Votes
Log in to reply
This topic has been deleted. Only users with topic management privileges can see it.
  • G Offline
    G Offline
    ginnapp
    wrote on last edited by ginnapp
    #1

    A project that I am currently working on has a list of components categories provided by the client. Within that component list, there are also sub-categories.
    For example:
    Component category - Covering
    Sub-category - Membrane
    Sub-category - Wrapping

    I want to create Solibri classifications for the list of components (e.g. Covering).

    Is there any way to add “sub-classifcations” where I can add Membrane and Wrapping under the Covering Classification?

    Hopefully this makes sense and I appreciate any assistance on this.

    Thank you!

    1 Reply Last reply
    1
    • JSNJ Offline
      JSNJ Offline
      JSN
      wrote on last edited by JSN
      #2

      Simple answer is no. Long answer is there are maybe smart ways to achieve what you want but the question is what do you need in the end as a result?

      1 Reply Last reply
      0
      • G Offline
        G Offline
        ginnapp
        wrote on last edited by ginnapp
        #3

        Thanks for the response. The main purpose is to facilitate our checking processes. There are checks that we need to do for all Coverings and there are other checks that are very specific for Membrane and other checks that are specific for Wrapping, for example.

        1 Reply Last reply
        0
        • john.lippJ Offline
          john.lippJ Offline
          john.lipp
          wrote on last edited by
          #4

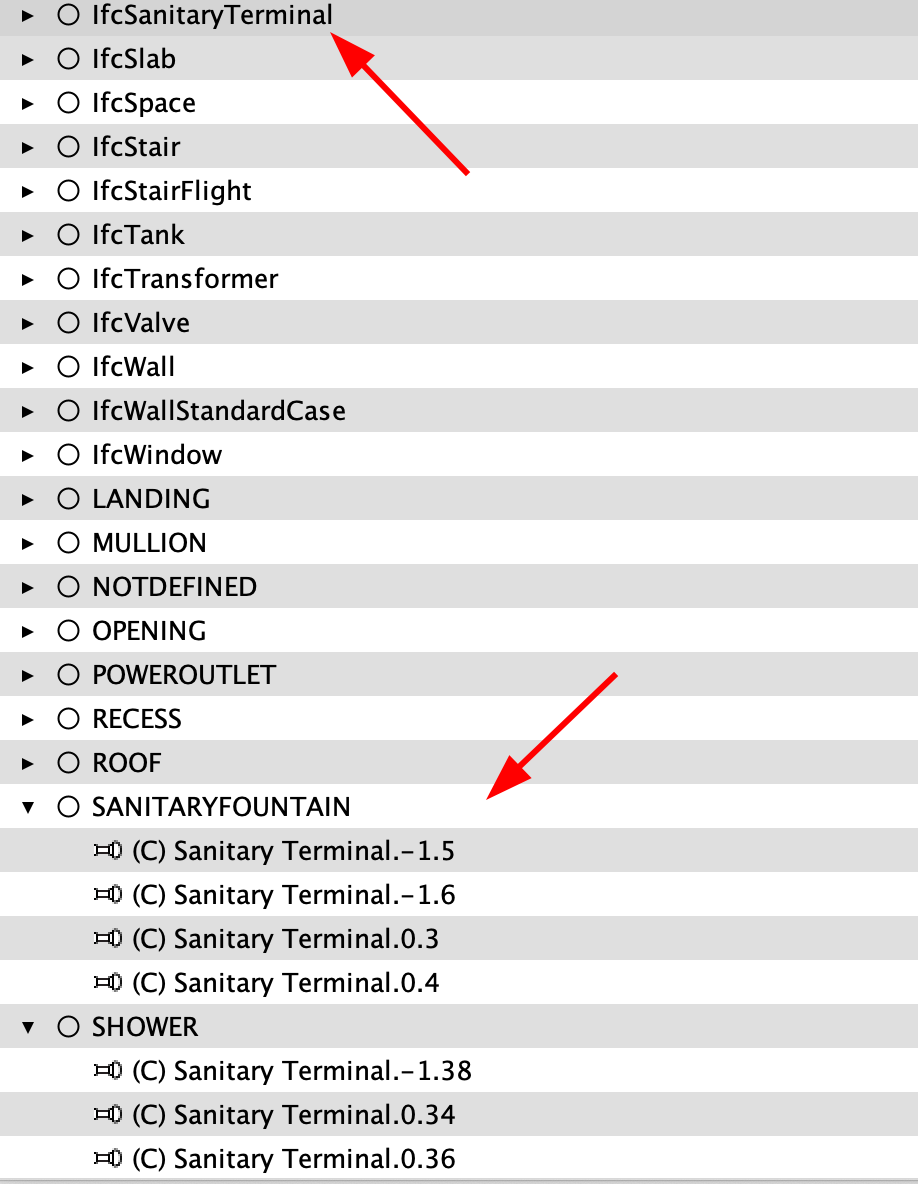

          Would a multiple classification / All matching that uses the =1 / =2 nomination to classify the component directly to their Ifc Entity and Predefined Type work?

          Ifc Entity - Predefined Type - Multiple Classification.classification


          1 Reply Last reply
          1
          • A Offline
            A Offline
            ArjanPeeters
            wrote on last edited by
            #5

            In IFC itself it is possible to have a IfcClassification with parent/child relationships

            1 Reply Last reply
            0
