Sectioning Settings exclude Rooms

HechtwieFisch

@JSN Thanks a lot for the answers! As I’m not the model author and we need the rooms normally, the first solution is not feasible. The second one I’m already using but wanted to know if there was a way around it. But the third I had thought about but I never try making them fully transparent (as everything lower than 100% is not working)

Pasi Paasiala

@HechtwieFisch Thanks for the workflow.

Alex.J

I have a similar issue where I do want to see the room, but there is not an easy distinction between

an enclosed volume (the room)
a surrounded empty space surrounded by the room)

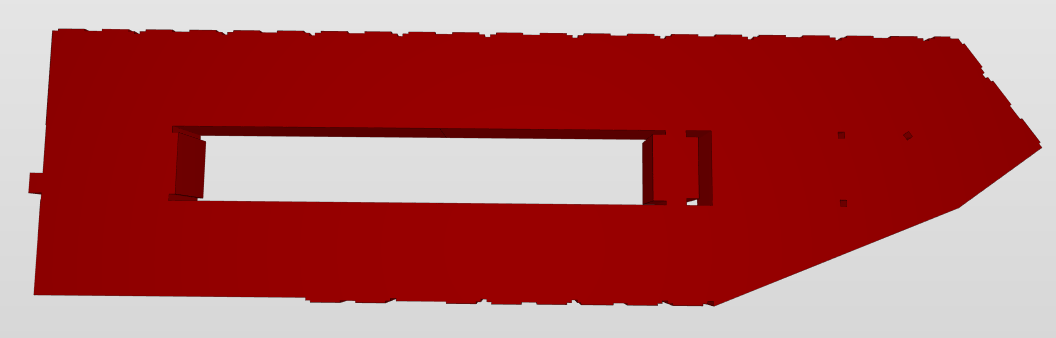

Here is how the IfcSpace looks like:

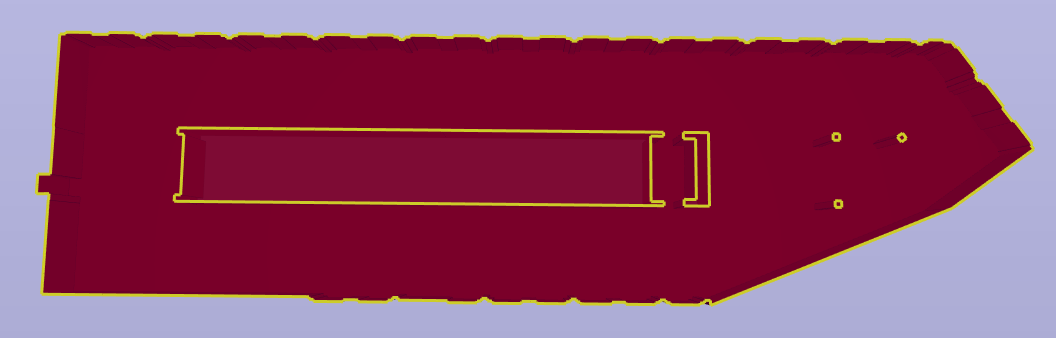

And how it looks when I cut through:

You see a slightly different opacity, but once the rest of the building is in the background this becomes impossible.

Any way to solve that?

Pasi Paasiala

@Alex-J Would it be possible to have a simple IFC file that duplicates this issue?

Alex.J

@Pasi-Paasiala I’ll look into it

Matti

@Alex-J said in Sectioning Settings exclude Rooms:

You see a slightly different opacity, but once the rest of the building is in the background this becomes impossible.

Any way to solve that?

The holes are filled in sections ATM. We have not yet implemented this.

Alex.J

@Matti-Kannala said in Sectioning Settings exclude Rooms:

The holes are filled in sections ATM. We have not yet implemented this.

Do you still need a test file then @Pasi-Paasiala ?

Pasi Paasiala

@Alex-J Test model certainly doesn’t harm.

Alex.J

@Pasi-Paasiala said in Sectioning Settings exclude Rooms:

@Alex-J Would it be possible to have a simple IFC file that duplicates this issue?

Here it is, I finally got around to find a nice example
TestFile_RoomSection.ifc

Alex.J

Hi @Pasi-Paasiala,
just to let you know this issue is still cumbersome.

Here’s another example with a wall opening:

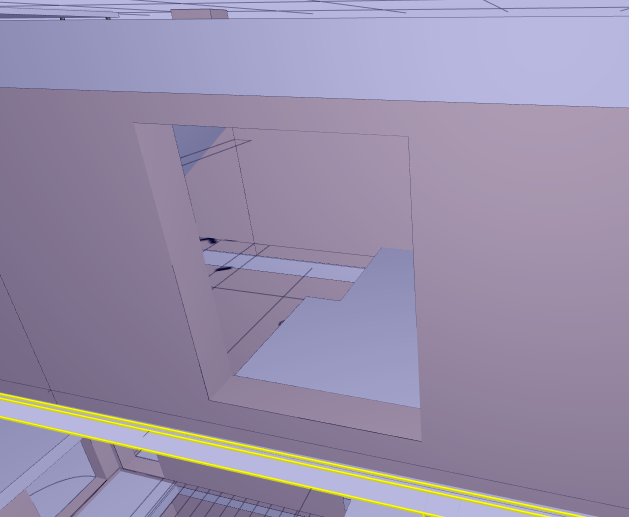

cutting in front of it:

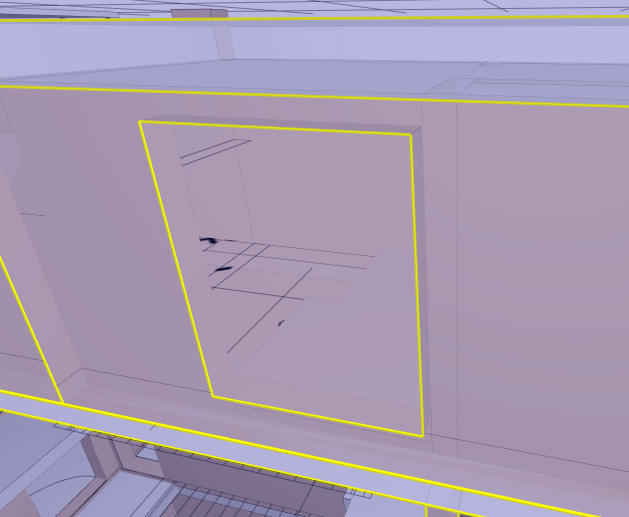

cutting through it:

You can see the visibility is quite bad when the plane goes through it.
