Check if a beam is inside a wall (by: Relations)

[Robbert Evers]

Hi guys,

I am having some trouble with finding the right rule to check.

What I want:
I want to check if a wall contains a beam, founded by Relations.
All the walls that don’t have a beam should be alerted by Solibri.

Why
Because I want to check if the supplier added a beam. After that, I can judge if it’s correct if there is or isn’t a beam inside the wall.

Used rules:
SOL/231/1.6

What am I doing wrong?

Hopefully, one off the @Solibrians can help me out!

Thank you in advance,

[Lauri Luoma]

@Nando Robbert shared the model via e-mail, sorry it took a while to get the answer here

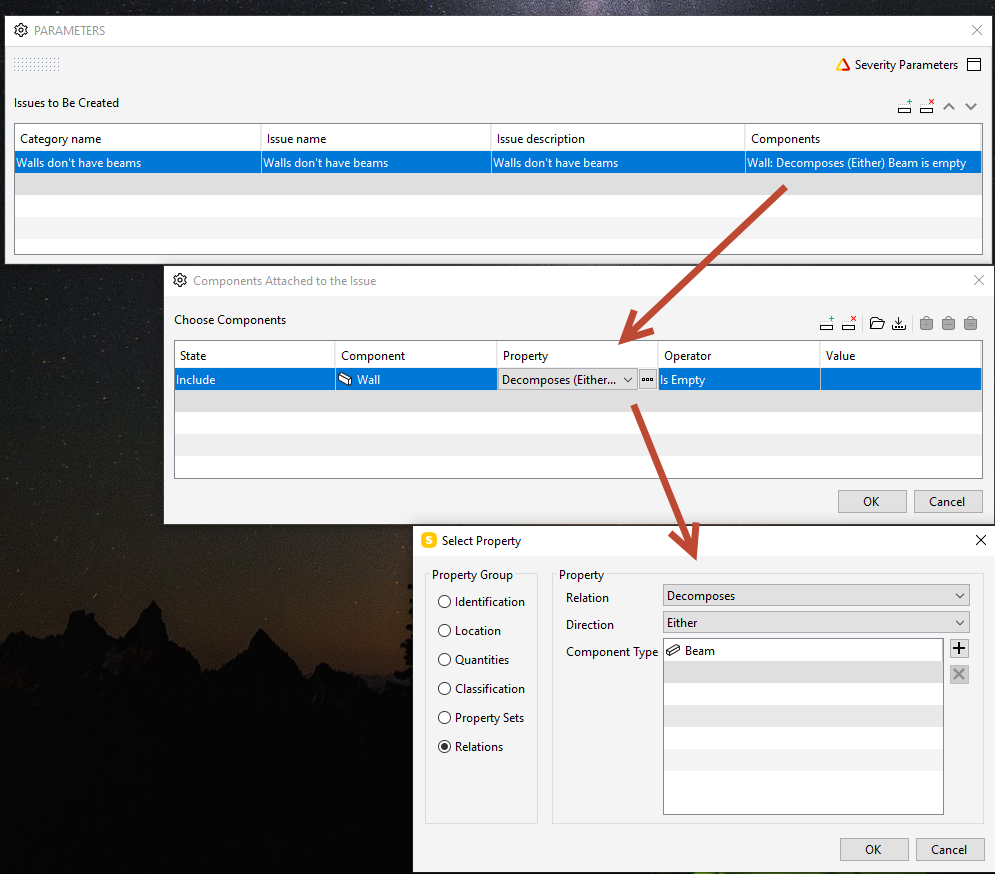

This can be checked with at least these 2 rules:

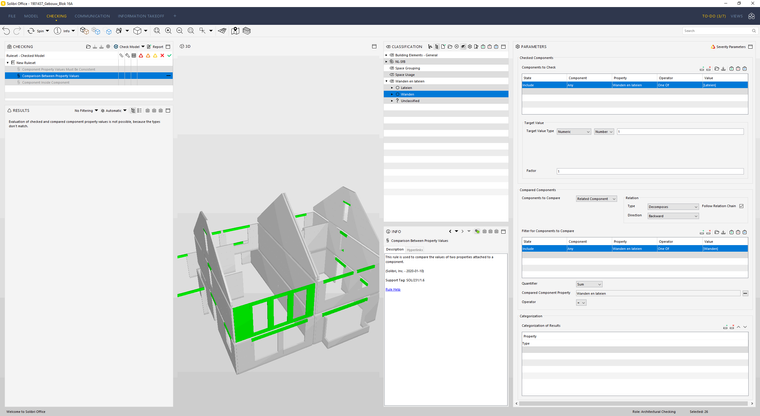

rule #231

And

rule #232

[Lauri Luoma]

@Robbert-Evers I can have a go if you have a model to share

[Robbert Evers]

@Lauri-Luoma

Thanks Lauri!

It helped me out, thank you very much for your response.

[Nando]

… ?
Did I miss something, or the answer was never posted?
[I’m trying to do something similar]

Cheers!

[Robbert Evers]

@Nando
Lauri helped me out with a good solution ;)!

[Lauri Luoma]

@Nando Robbert shared the model via e-mail, sorry it took a while to get the answer here

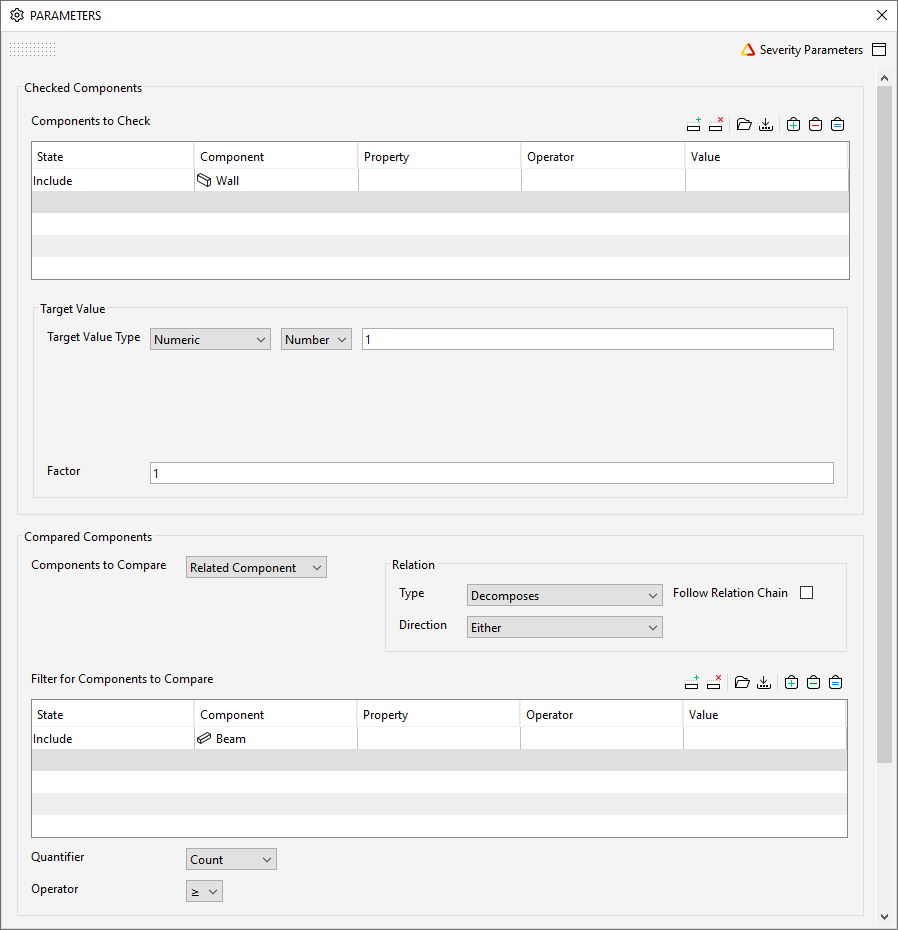

This can be checked with at least these 2 rules:

rule #231

And

rule #232
