Wildcard for excluding
-
Any feedback from @Solibrians on this subject?
-
Hi. If Solibri was using Regex, this would be quite simple. But Regex syntax is not that easy for people unfamiliar to that and Solibri uses much simpler syntax with the ? and * wildcards. Maybe ! could be used as the negative operator. If the thing started with !, it would flip the condition. Example:
!SmallDoor
would match anything that does not have “SmallDoor” in that field
!*Door
would match anything that does not end in “Door”The more special characters we have, the more likely it is users need to match something that contains those extra characters. Backslash is often used as the escape operator. \ would match one backslash, ! would match one exclamation mark etc. Does this syntax sound good?
-
@lasse-lindqvist said in Wildcard for excluding:
The more special characters we have, the more likely it is users need to match something that contains those extra characters. Backslash is often used as the escape operator. \ would match one backslash, ! would match one exclamation mark etc. Does this syntax sound good?
Not sure but I think the editor kinda did what you wanted to say, so I try to make it a bit clearer.
You mean if "\" would be added as an additional escape operator "\!" would be "!" and "\\" then "\" ?Or did I get something wrong?
-
-
Sounds a good, I will think about it a bit.
There is also another issue I want to point out.

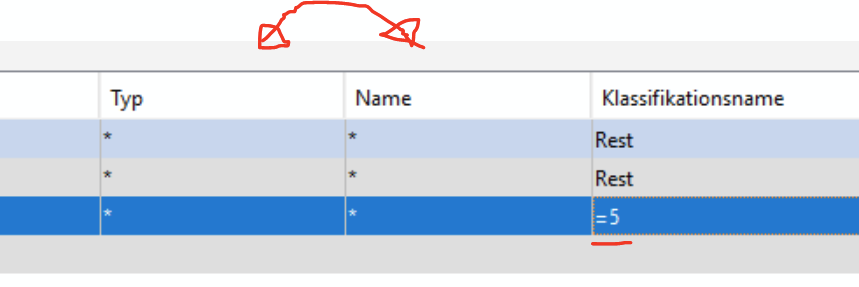

When you change columns or add new ones, the =#column number does not change automatically.
You can kinda bypass this more or less by always adding columns to the far right side, but this making things messy and annyoing - if the counter would be a bit smarter no one would be unhappy I guess. -
@lasse-lindqvist I like the idea!
!SmallDoor => is not exactly “SmallDoor”
!*SmallDoor* => does not contain “SmallDoor”
!SmallDoor* => does not start with “SmallDoor”
!*SmallDoor => does not end with “SmallDoor”
etc.As for the special characters, we already forbid special letters (ü, é, ç…), I would be surprised if “!” is used. But the escape operator would be the safe way to go, for sure.
But I still see a difference between
- classifying something that is not “SmallDoor”
- specifically unclassifying “SmallDoor”
Let’s say my only exception is “SmallDoor” and I want to unclassify it (this could be managed in the filter, but my goal is to still be able to visualize the elements which are not classified). And I also have a bunch of other stuff to classify.
- the original idea was to unclassify “SmallDoor” => this allows me to see that there is a SmallDoor element, and that I regard it as not belonging to any of my set classifications
- let’s say I classify my other bunch of stuff
– *oor* -> A
– *all* -> B
– etc.
The classification rules would try to classify the “SmallDoor” element and I don’t see a new way of ignoring it with the ! rule.
We would thus come back to the current workaround, where we set as a first rule to classify “SmallDoor” as “not classified”. This way you can use this in checking rules or ITOs to filter “Except classification is undefined” + "Except classification = ‘not classified’ "
I also agree with @JSN that managing filters separately could be helpful, although that is a slightly different subject. That way you can say “rule A uses filter B” and optimize your filter B without having to reset all links between rule results and slides, for instance.
That’s actually what we are trying to achieve with some classifications (and I’m sure we’re not alone) - the problem being that in some cases, a classification can’t achieve the same result as a filter, specifically if you work with relations. I’ve mentioned this in a different post about decomposition status, where you need to create 3 classifications in order to be able to easily distinguish:- parent elements
- child elements
- intermediate elements that are both parent and child (it does happen)
- elements that are neither an assembly nor part of an assembly
In the end, it would be easier to improve classifications than to create something new, as suggested.
And I also agree with @JSN post of today that if the referenced column could update automatically, this would prevent some quick mistakes.
-
@alexander-joslyn said in Wildcard for excluding:
I also agree with @JSN that managing filters separately could be helpful, although that is a slightly different subject. That way you can say “rule A uses filter B” and optimize your filter B without having to reset all links between rule results and slides, for instance.
That’s actually what we are trying to achieve with some classifications (and I’m sure we’re not alone) - the problem being that in some cases, a classification can’t achieve the same result as a filter, specifically if you work with relations. I’ve mentioned this in a different post about decomposition status, where you need to create 3 classifications in order to be able to easily distinguish:parent elements
child elements
intermediate elements that are both parent and child (it does happen)
elements that are neither an assembly nor part of an assembly
In the end, it would be easier to improve classifications than to create something new, as suggested.Yes, absolutely - decomposing elements are terrible cumbersome to classify at the moment - because you can’t add the relationship as a column in the classification rules - this makes things more complex that it should - it’s not impossible but I have not yet managed to bring building element parts and elements with no child parts in a good single ITO listing their material due to that issue. But I guess with the custom informations this should be possible now … have to try again.
And of course if one day the names of classifications could be changed without any issues, that would be like a second birthday.
-
@Alexander-Joslyn said in Wildcard for excluding:
I’ve mentioned this in a different post about decomposition status
–> Here is the post I was talking about:
@Alexander-Joslyn said in Improvement sugesstion: Filtering IfcBuildingElementPart:@agroni and for anyone interested, here are the classifications I use: Decomposition classifications.zip
@TheoR said in Improvement sugesstion: Filtering IfcBuildingElementPart:
@alexander-joslyn said in Improvement sugesstion: Filtering IfcBuildingElementPart:
I usually use 3 classifications to help out:
- ChildComponents => marks all elements for which the relation “Decomposes” backward is not empty
- ParentComponents => marks all elements for which the relation “Decomposes” backward is not empty
- Decomposition status => uses the previous classifications to define if an element is top-level, middle-level, bottom-level in the decomposition or not part of a decomposition
Aren’t the first two the same? Shouldn’t one of them be “forward” instead of “backward”?
@TheoR you are exactly right of course, I was a bit hasty with my copy-pasting…
I corrected it for clarity (ParentComponents => marks all elements for which the relation “Decomposes” forward is not empty) -
Digging out this topic again as I wonder what was the outocme of …
@lasse-lindqvist said
The more special characters we have, the more likely it is users need to match something that contains those extra characters. Backslash is often used as the escape operator. \ would match one backslash, ! would match one exclamation mark etc. Does this syntax sound good?
@JSN said
You mean if "\" would be added as an additional escape operator "\!" would be "!" and "\\" then "\" ?@lasse-lindqvist said in Wildcard for excluding:
Yes, exactly like that.
As I have actually exactly this case again where all the doors which are not containing ND as FireRating value should be classified as FireDoors
Moreover I have to use multiple classification values as FireDoors are also classified as normal Doors. Due to that I would need the previously discussed excluding wildcard functionality as otherwise I would need either to specify all FIreRatings as condition (which might be an option in this case, but excluding would be way more robust and elegant) or make use of an additional classification (which would rise complexity and make it more complicated than it has to be).
So, any pleans of introducing a new wildcard option for excluding anytime soon?
