Appearrance of IfcWindow in Solibri

JeroenKoomen

@Matti-Kannala @Pasi-Paasiala

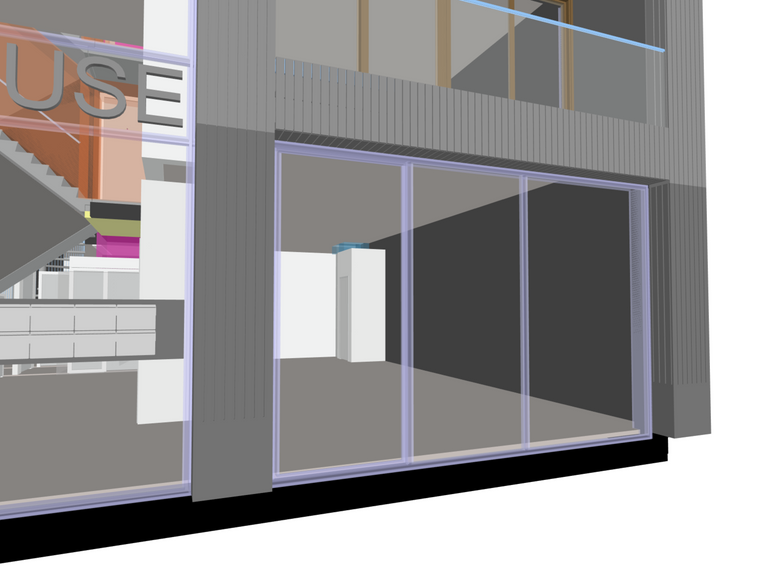

Is it on purpose that Solibri is doing this?

Matti

This looks like a bug. We will check why it is happening.

JeroenKoomen

Thanks! @Matti-Kannala

Yumi Yogi

Hi there,
I’ve encounterd a similar problem as Mr. JeroenKoomen.

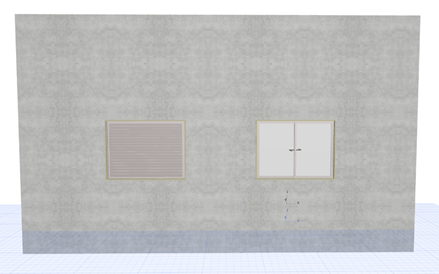

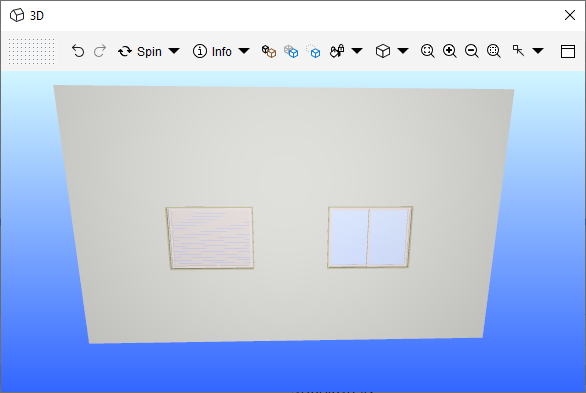

Please look at the image below. This is the 3D display in Solibri 9.10.5.
It looks transparent window. It is very confusing for me.

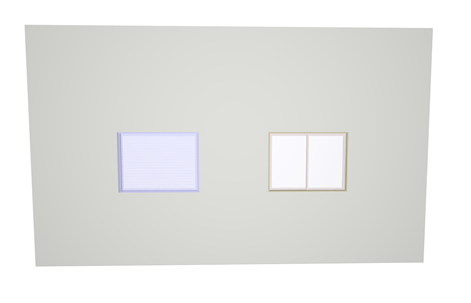

Though no explicit transparency material settings for windows in Archicad22, Solibri displays them as a transparent window component.

See also the Archicad22 settings.

Please check it out, the attached IFC export from ArchiCAD22.
test_model.ifc

Best regards,

Yuumi

Matti

Solibri currently skips opaque (non transparent) IFC colors for window objects.
This is happening for the both models.

This was done by purpose. Earlier the IFC colors of window object were often wrong and that is why this feature has been there. This is very easy to change by removing this feature.

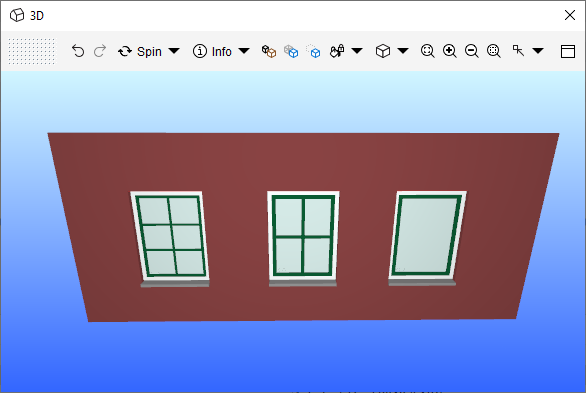

We decided to change this to the next release. This is how it looks in Solibri without skipping the window color:

For some reason the IFC model has the window frames as separate window objects (e.g. green frames)

JeroenKoomen

@Matti-Kannala

Do I understand correctly that you are going to remove this feature in the next release?
Would be great!

Thanks

Matti

@JeroenKoomen

Yes
If the user wants to have transparent windows, it will be still possible with the classification colors or the color maps.

Yumi Yogi

@Matti-Kannala
Everything is clear to me. Thank you very much.

Ricardo

Are there more people who are again/still experiencing transparant windows in Solibri?

Ronald van Emst

@ricardo Isn’t this a curtain wall?
check material.

Anees Alomar

Hi @matti-kannala,

where could I find this feature to turn it off?
It is frustrating to know after one year of having this issue that it is coming from Solibri, not from the exporting software.

Looking forward to your reply!
Thanks
