Special symbols in classification does not show up

[twosk]

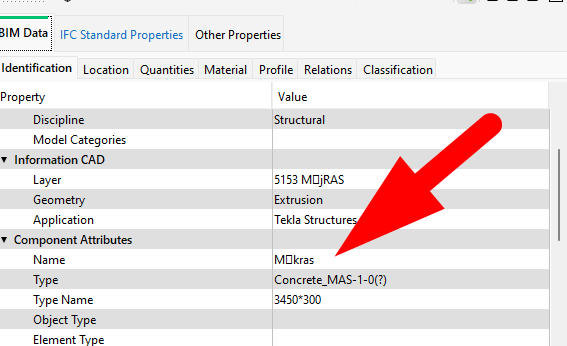

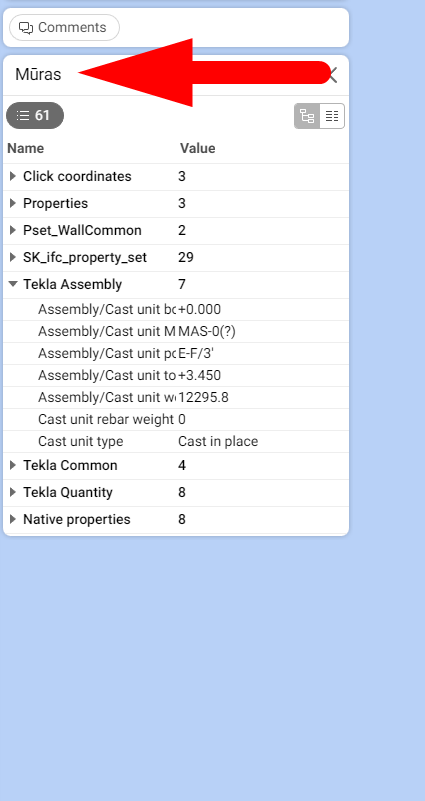

Hi, I have structural model with assemblies that have special symbols in name.

In solibri newest version it does not show up

I believe it was fine in previous versions.

Is it something i can fix myself?

[bariscanpolat]

Hi,

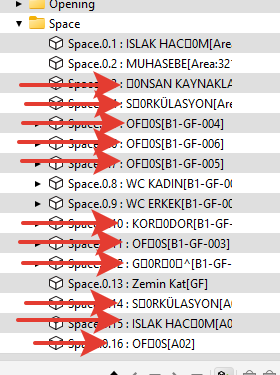

With the update, special characters are not shown right, not only classification:

And you are right, it was ok before.

[twosk]

@bariscanpolat
Perhaps its connected to regional settings? Or is it ok in you computer?

[bariscanpolat]

I don’t know if it is about regional settings, because before the update it was ok

[Matti]

@twosk @bariscanpolat

Could you confirm which version of Solibri you are using and are they correct in some older Solibri version?

[Matti]

Also you can try these settings

or

[manuel.furia]

@twosk

It is most likely connected to regional settings. Before 9.13.4, Solibri used the System default encoding for reading strings in ifc files. This was now changed to UTF-8 by default, which can be changed from the Solibri settings (but the system settings are ignored).

You can try this:

You should probably try Windows-1257 (Baltic).

[manuel.furia]

@Matti-Kannala Windows-1252 is not going to work, since it does not have the U with the bar on top. Windows-1257 may be the right encoding.

[bariscanpolat]

@Matti-Kannala thank you, I changed the settings to UTF-8 and it worked for me

[twosk]

@manuel-furia
it does not work with the newest version.
With an older version it works if I reupdate the file.
It works with the newest version and UTF-8 settings.
Thank you for your suggestion.

[manuel.furia]

So, I’m guessing the strings in the file are encoded with UTF-8, but the IFC Import Setting uses the system’s encoding by default, not UTF-8 as I was expecting.
Since UTF-8 strings are much more common than other encodings, I will create a ticket to always default to UTF-8 instead of System’s default settings.

[Matti]

Solibri 9.13.5 has been released!

IFC import handles now special characters correctly.
UTF-8 is now the default encoding for IFC.

https://society.solibri.com/topic/2524/solibri-9-13-5-has-been-released
